Smart Designer Aluminium Door
Smart Designer Doors are considered one of the finest entrance doors available today. A high-end, luxurious aluminium door available in a massive range of styles and colours, this is a door that sets the bar in terms of security, style and performance.
Or buy now and pay nothing for 9
months
19.9% APR Representative
Smart Designer Doors are considered one of the finest entrance doors available today. A high-end, luxurious aluminium door available in a massive range of styles and colours, this is a door that sets the bar in terms of security, style and performance.
The Smart Designer range is our flagship entrance door for customers who demand the best. Available either delivered to your door or as part of our full survey and installation package, we are still committed to providing the best price you'll find for a Smart designer door.
|
Brand/Model
Smart Designer Door |
Smart Designer Door |
|
Door Leaf Construction
Aluminium |
Aluminium |
|
Outer Frame
Aluminium |
Aluminium |
|
Delivery Time
6-7 Weeks* |
6-7 Weeks* |
|
Glazing
61.6mm/66.8mm triple glazing (depending on door design) |
61.6mm/66.8mm triple glazing (depending on door design) |
|
Cill Options
150mm/190mm/225mm |
150mm/190mm/225mm |
|
Door Colours
61 Smart exclusive colours, 200+ RAL colours, paint codes can be matched on request |
61 Smart exclusive colours, 200+ RAL colours, paint codes can be matched on request |
|
Colours Available Both Sides
Yes |
Yes |
|
Frame Colours
61 Smart exclusive colours, 200+ RAL colours, paint codes can be matched on request |
61 Smart exclusive colours, 200+ RAL colours, paint codes can be matched on request |
|
Handle Colours
Chrome/Black/Gold/Graphite/White/Stainless Steel |
Chrome/Black/Gold/Graphite/White/Stainless Steel |
|
Number of Keys
3 |
3 |
|
Guarantee
10-year Product Guarantee, 25-year paint guarantee, 5-year glazing guarantee |
10-year Product Guarantee, 25-year paint guarantee, 5-year glazing guarantee |
*Delivery time is a typical example and is dependent on postcode and current workload.
|
Stable Door Option
No |
No |
|
Double Door Option
No |
No |
|
Arched Door Option
No |
No |
|
Cat Flap Option
No |
No |
|
Frame Depth
70mm |
70mm |
|
Threshold Height
23.5mm external/15mm internal |
23.5mm external/15mm internal |
|
Height Range
1960mm to 2400mm (single doors) |
1960mm to 2400mm (single doors) |
|
Width Range
860mm to 1200mm (single doors) |
860mm to 1200mm (single doors) |
|
Glazed Side Panels
300mm - 1000mm |
300mm - 1000mm |
|
Composite Side Panels
N/A |
N/A |
|
Top Boxes
300mm - 1000mm |
300mm - 1000mm |
|

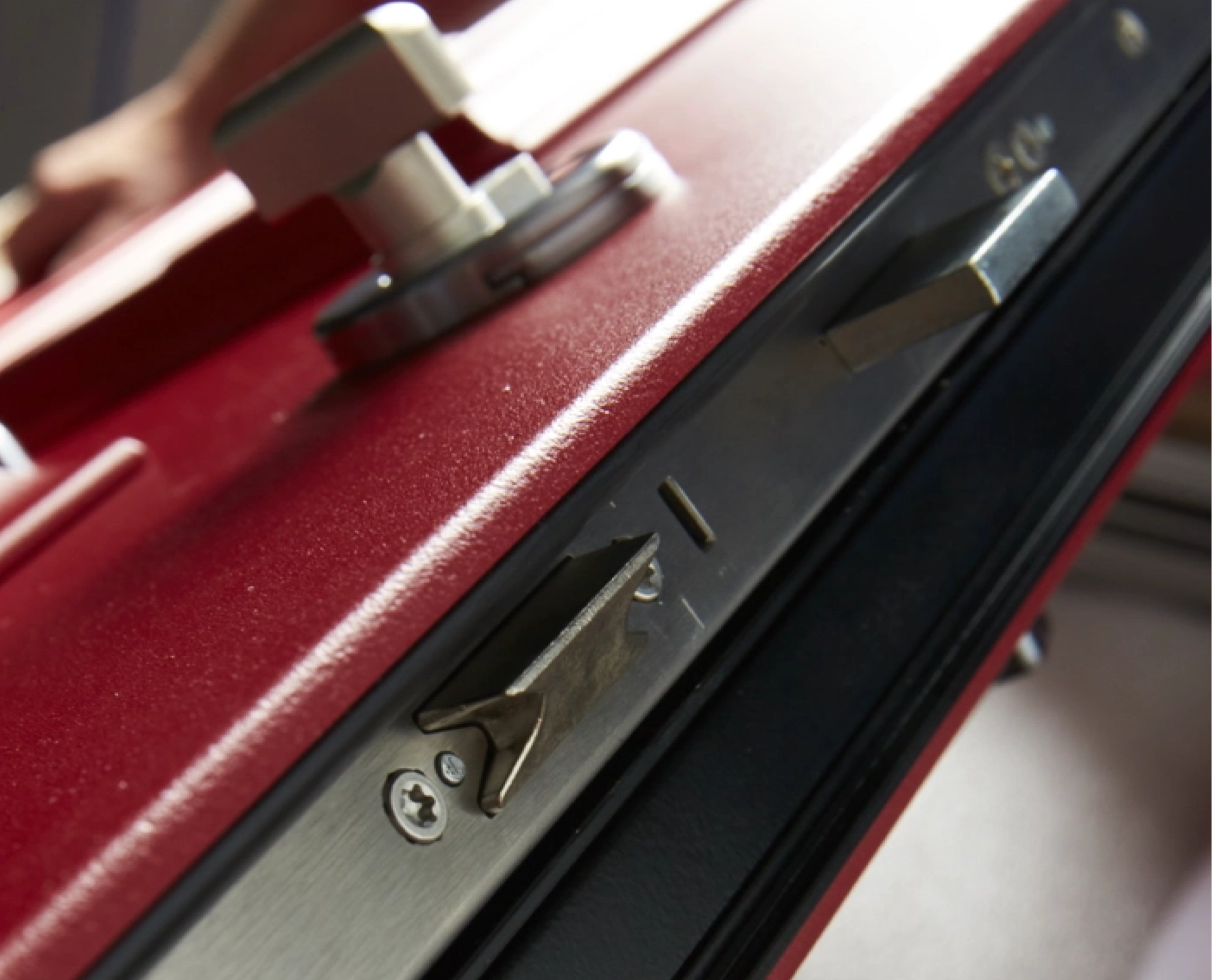

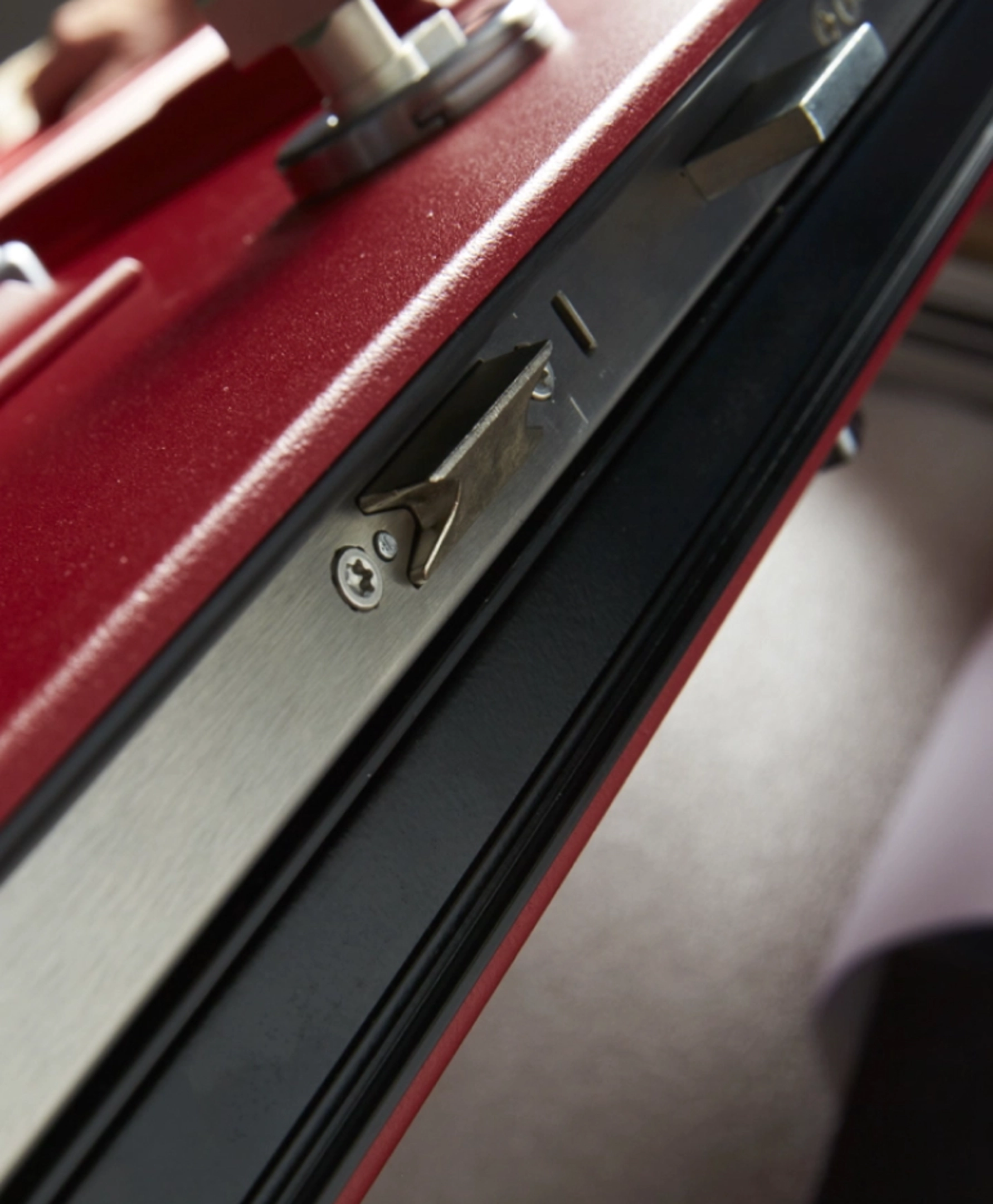

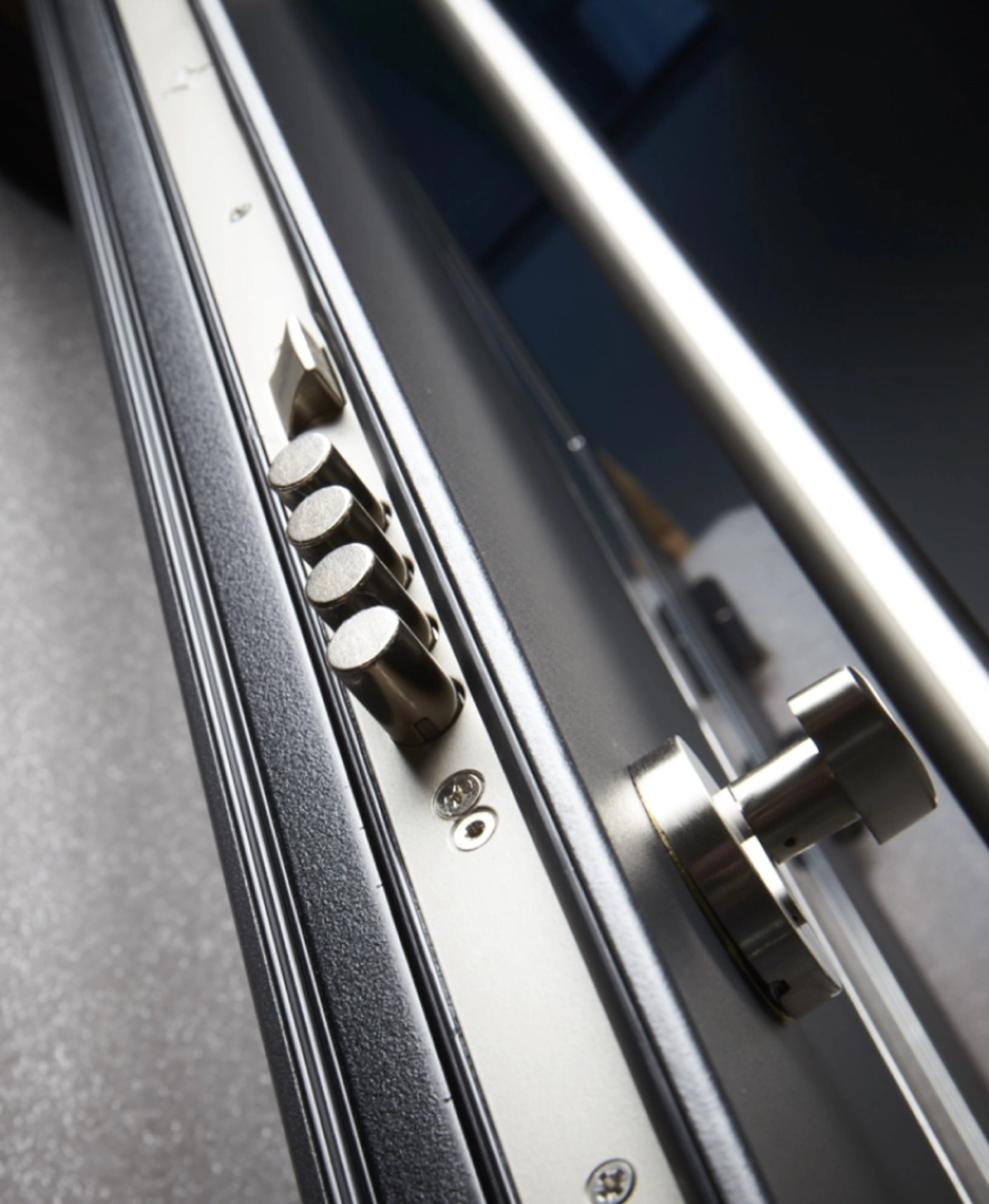

Lock
Fuhr (slam lock)/MCM (10 point) Multipoint locking system |
Fuhr (slam lock)/MCM (10 point) Multipoint locking system |
|

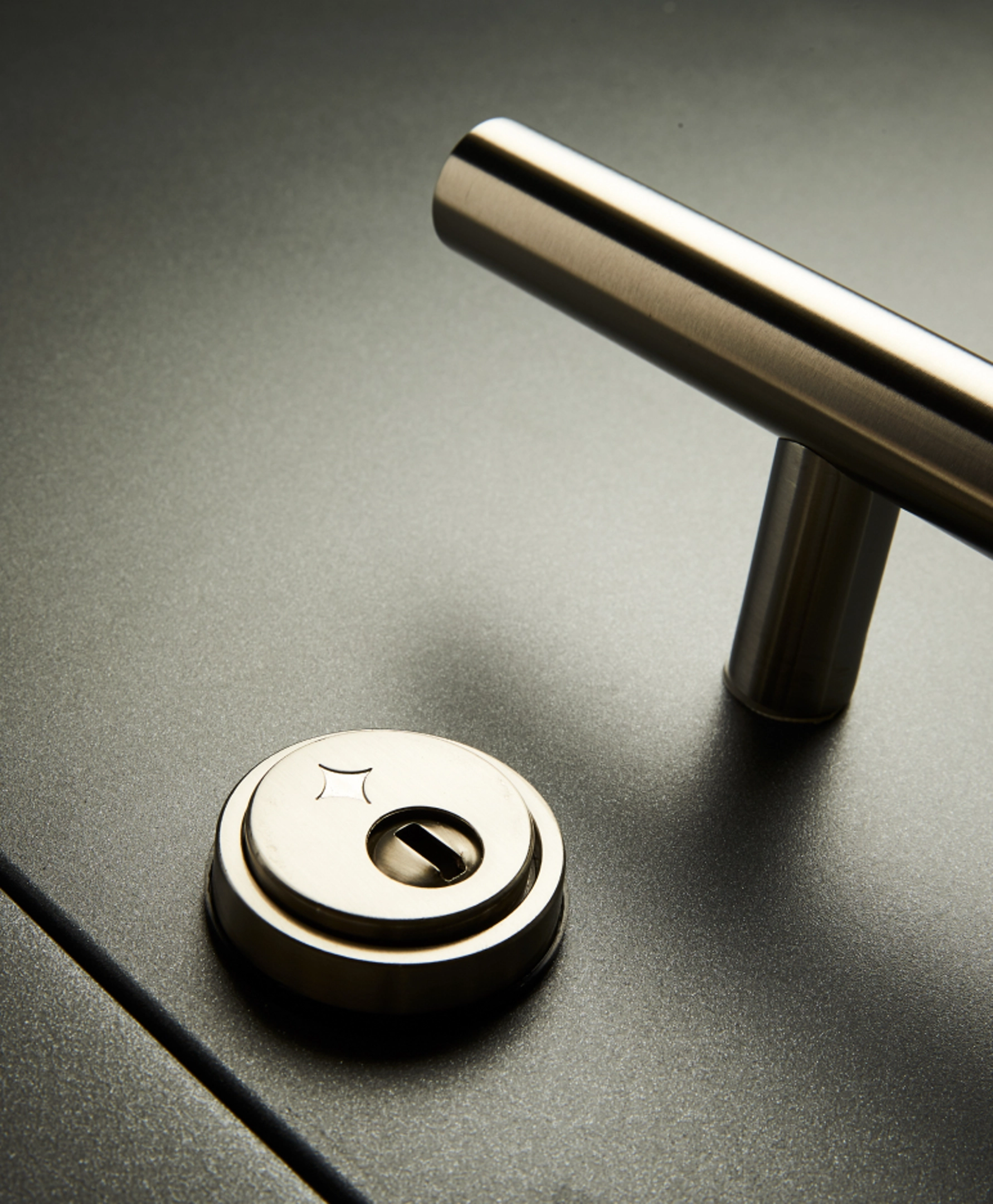

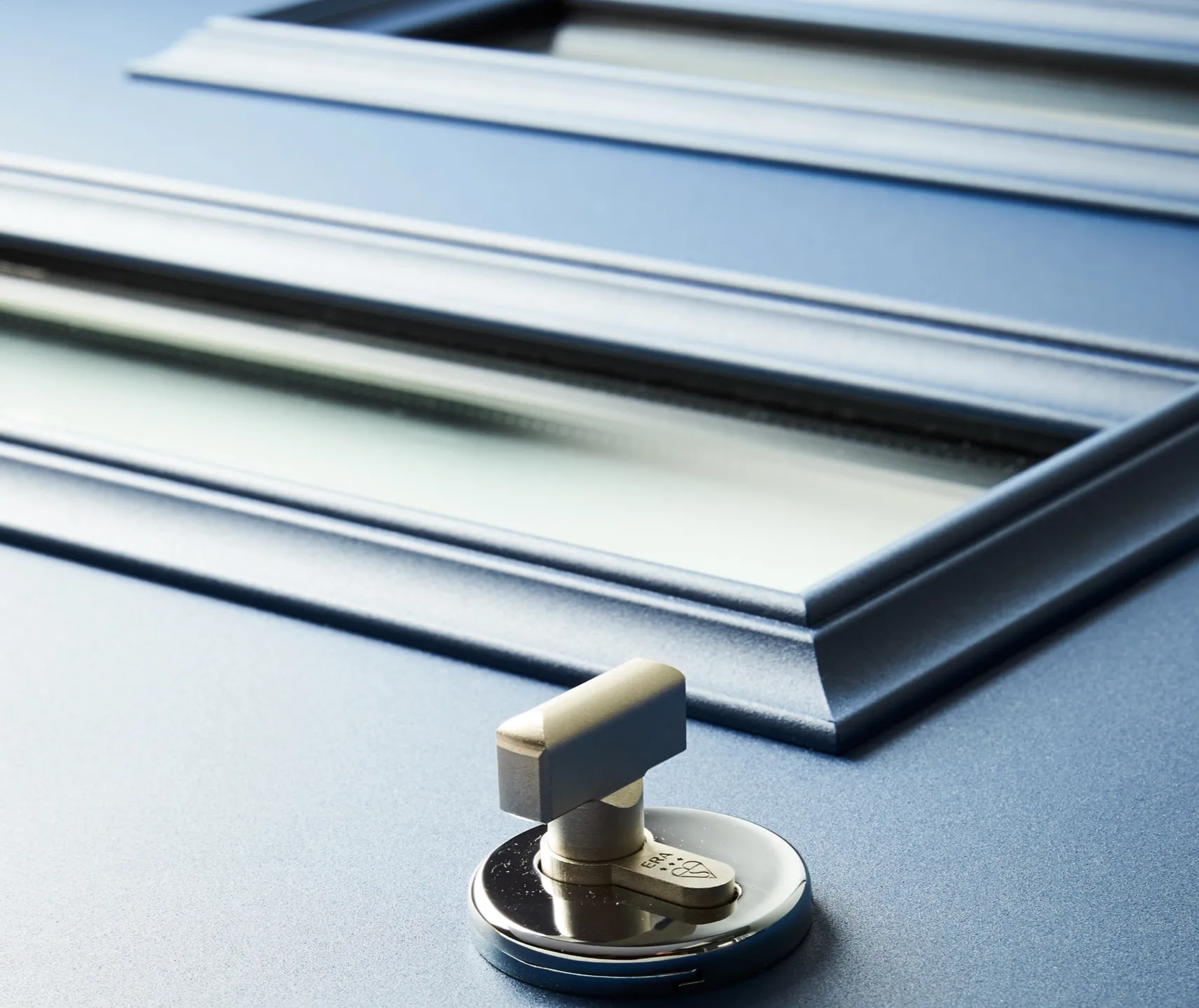

Cylinder
MCM |
MCM |
|
Hinge Type
Tecnac 3D adjustable hinges |
Tecnac 3D adjustable hinges |
|
Document L Compliant
Yes |
Yes |
|
Security
Pas24 |
Pas24 |
|
Weather
BS6375 |
BS6375 |
|
Home Survey
Yes |
Yes |
|
Installation Guarantee
5 years |
5 years |
|
Insurance Backed Guarantee
10 years |
10 years |
|
Old door/frame removed and disposed of
Yes |
Yes |
|
Product demonstration
Yes |
Yes |
|
Dust sheets used
Yes |
Yes |
|
Matching aluminium architraves
Yes - as required |
Yes - as required |
Step 1 - Viewed from the outside
Width: Measure in 3 points; top, middle and bottom and take the smallest measurement and deduct 10mm.
Step 2 - Viewed from the outside
Height: Measure again in 3 points; left, centre and right and take the smallest measurement and deduct 10mm. Measure to the underside of the existing cill unless it is NOT going to be replaced i.e concrete cill.
Step 3 - Viewed from the outside
Diagonals: Ensure the opening is square by measuring the diagonals as shown in red. There should be no more than 5mm difference between each measurement.
Step 4 - Viewed from the inside
Repeat the process from the inside of the door from plasterwork to plasterwork and make note of the smallest measurements as before
